Disposable Syringe Filters

Explore disposable syringe filters in 13, 25 and 30 mm, with polypropylene housings and a choice of membranes in every size. Quantities are quoted on request; compare the details below before enquiring.

Request a Quote for this range

NylonPTFEPESPVDFCAMCEPPRCGlass fibre

Illustrative macro view of coloured filter housings and textured membranes

Sizes

Select a size to enquire

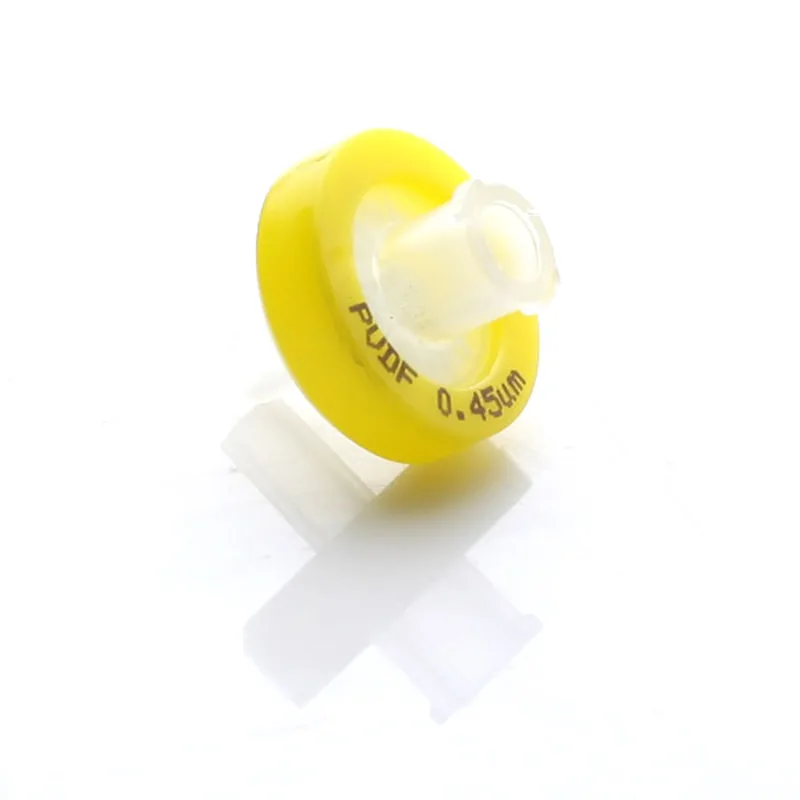

13mm disposable PVDF syringe filter, 0.45 µm

Ø 13 mm

13 mm Syringe Filter

For sample volumes below 10 ml. The photograph shows a yellow PVDF filter marked 0.45 µm.

Filtration area: 1 cm²
Max. pressure: 87 psi (6.0 bar) at 20 °C
Hold-up volume: < 25 µl
Max. sample volume: < 10 ml
Max. operating temp.: 50 °C
Housing: Polypropylene
Connectors: Female Luer Lock inlet; male slip Luer outlet
Membranes: Nylon 66, PTFE (hydrophobic and hydrophilic), PES, PVDF (hydrophobic and hydrophilic), CA, MCE, PP, glass fibre, RC
Pore sizes: 0.22 / 0.45 µm; glass fibre 0.7 / 1.2 µm

Enquire

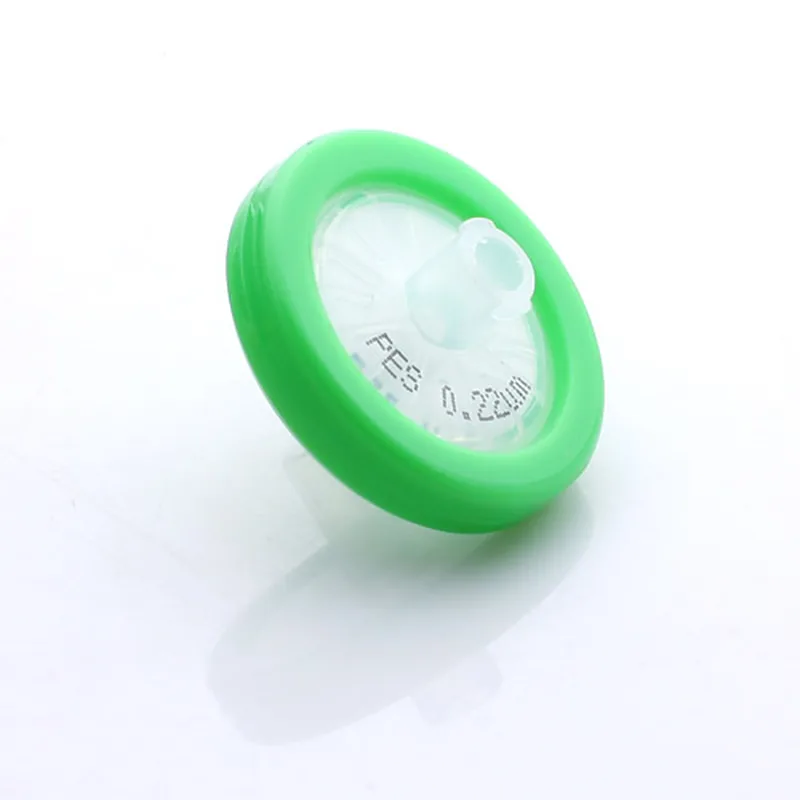

25mm disposable PES syringe filter, 0.22 µm

Ø 25 mm

25 mm Syringe Filter

For sample volumes below 100 ml. The photograph shows a PES filter marked 0.22 µm.

Filtration area: 3 cm²
Max. pressure: 87 psi (6.0 bar) at 20 °C
Hold-up volume: < 100 µl
Max. sample volume: < 100 ml
Max. operating temp.: 50 °C
Housing: Polypropylene
Connectors: Female Luer Lock inlet; male slip Luer outlet
Membranes: Nylon 66, PTFE (hydrophobic and hydrophilic), PES, PVDF (hydrophobic and hydrophilic), CA, MCE, PP, glass fibre, RC
Pore sizes: 0.22 / 0.45 µm; glass fibre 0.7 / 1.2 µm

Enquire

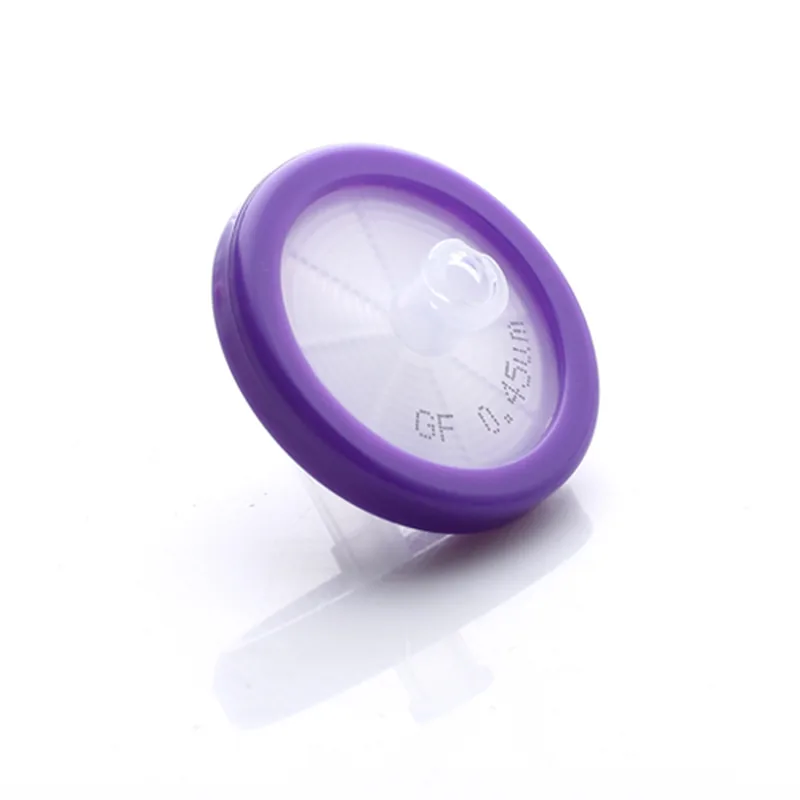

30mm disposable glass-fibre syringe filter

Ø 30 mm

30 mm Syringe Filter

For sample volumes below 200 ml. The photograph shows the purple glass fibre variant.

Filtration area: 4.5 cm²
Max. pressure: 87 psi (6.0 bar) at 20 °C
Hold-up volume: < 200 µl
Max. sample volume: < 200 ml
Max. operating temp.: 50 °C
Housing: Polypropylene
Connectors: Female Luer Lock inlet; male slip Luer outlet
Membranes: Nylon 66, PTFE (hydrophobic and hydrophilic), PES, PVDF (hydrophobic and hydrophilic), CA, MCE, PP, glass fibre, RC
Pore sizes: 0.22 / 0.45 µm; glass fibre 0.7 / 1.2 µm

Enquire

Technical specifications

Specifications for the 13, 25 and 30 mm disposable syringe filters. The filtration media is chosen to suit your application.

Disposable syringe filters, 13, 25 and 30 mm
Parameter	13 mm	25 mm	30 mm
Effective filtration area	1 cm²	3 cm²	4.5 cm²
Maximum pressure	87 psi (6.0 bar) at 20 °C	87 psi (6.0 bar) at 20 °C	87 psi (6.0 bar) at 20 °C
Hold-up volume	< 25 µl	< 100 µl	< 200 µl
Maximum sample volume	< 10 ml	< 100 ml	< 200 ml
Maximum operating temperature	50 °C	50 °C	50 °C
Housing	Polypropylene	Polypropylene	Polypropylene
Filtration media	See membrane options	See membrane options	See membrane options
Connectors	Inlet: female Luer lock Outlet: male slip Luer	Inlet: female Luer lock Outlet: male slip Luer	Inlet: female Luer lock Outlet: male slip Luer

Features

Colour-coded by membrane, so each filter type is easy to tell apart
HPLC certified: the filters do not produce extraneous peaks in the UV range
100% integrity tested, with high burst-strength ratings for consistent performance
Membrane media chosen for improved flow rates
A broad range of filtration media to suit different applications, including chromatography
0.45 µm for most clarification applications; 0.22 µm when fine particulate removal is required

Applications

HPLC sample preparation
Routine QC analysis
Content uniformity
Removal of protein precipitate
Dissolution testing
Food analysis
Bioscience analysis
Environmental samples

Membrane options

Choose for your sample chemistry, protein recovery and filtration needs. Ask us to help confirm compatibility.

Membrane selection guide
Membrane	Published membrane details
Nylon	Nylon 66. Available in 13, 25 and 30 mm; 0.22 / 0.45 µm.

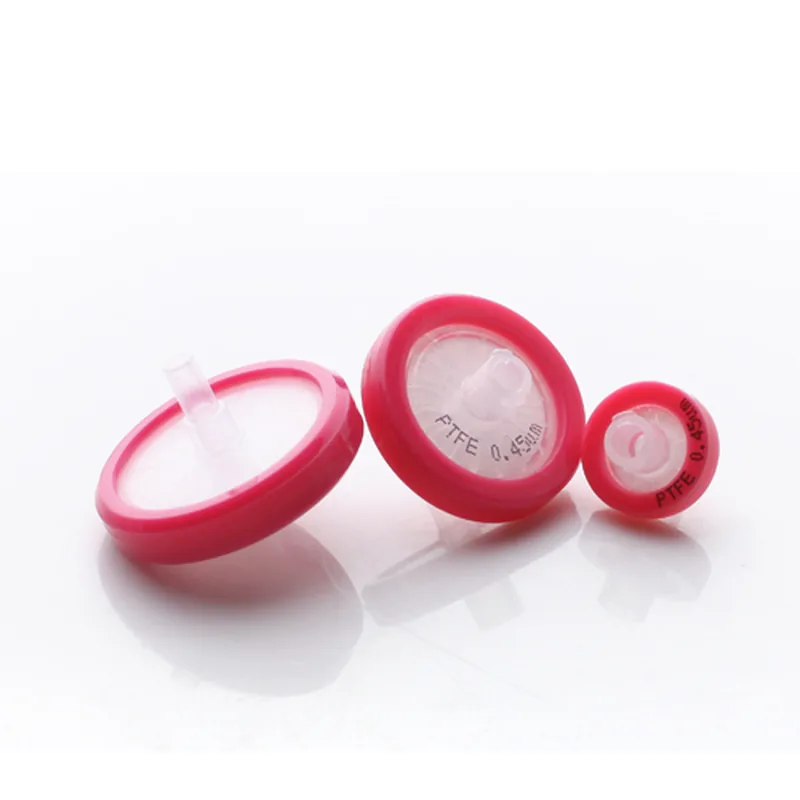

PTFE	Hydrophobic and hydrophilic versions. Available in 13, 25 and 30 mm; 0.22 / 0.45 µm.
PES	Polyethersulfone. Available in 13, 25 and 30 mm; 0.22 / 0.45 µm.
PVDF	Hydrophobic and hydrophilic versions. Available in 13, 25 and 30 mm; 0.22 / 0.45 µm.

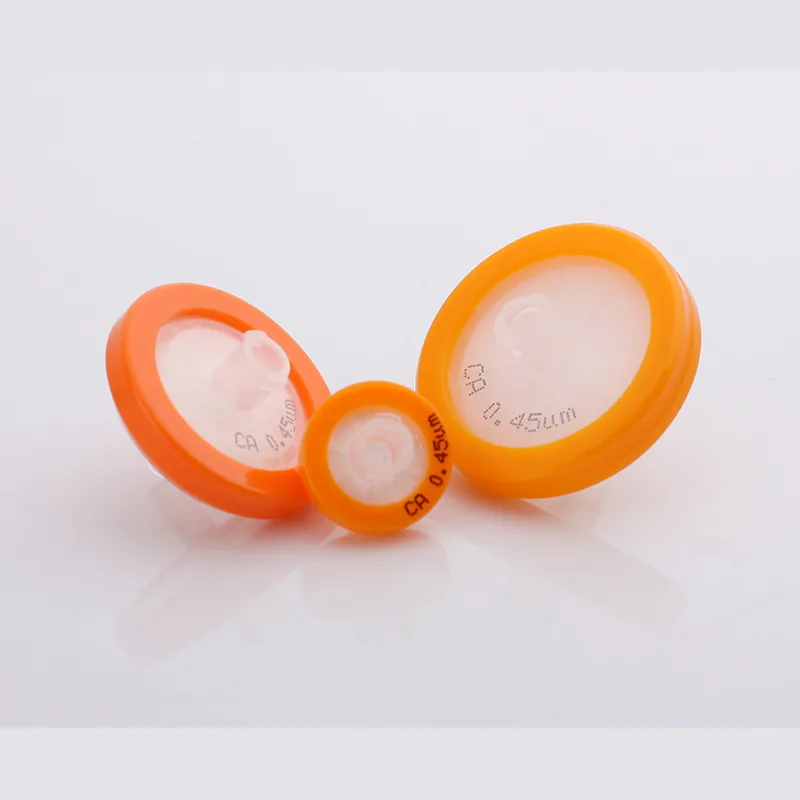

CA	Cellulose acetate. Available in 13, 25 and 30 mm; 0.22 / 0.45 µm.
MCE	Mixed cellulose acetate. Available in 13, 25 and 30 mm; 0.22 / 0.45 µm.
PP	Polypropylene membrane. Available in 13, 25 and 30 mm; 0.22 / 0.45 µm.
RC	Regenerated cellulose. Available in 13, 25 and 30 mm; 0.22 / 0.45 µm.
Glass fibre	Glass fibre (GF). Available in 13, 25 and 30 mm; 0.7 / 1.2 µm.

Product codes

Codes follow the pattern S [size] [membrane] [pore size], for example S25NY022 is a 25 mm nylon filter with 0.22 µm pores. H and L at the end of a code mean hydrophobic and hydrophilic. Quantities are quoted on request.

Disposable syringe filter product codes
Membrane	Pore size	13 mm	25 mm	30 mm
Nylon 66	0.22 µm	`S13NY022`	`S25NY022`	`S30NY022`
Nylon 66	0.45 µm	`S13NY045`	`S25NY045`	`S30NY045`
PTFE (hydrophobic)	0.22 µm	`S13PTFE022H`	`S25PTFE022H`	`S30PTFE022H`
PTFE (hydrophobic)	0.45 µm	`S13PTFE045H`	`S25PTFE045H`	`S30PTFE045H`
PTFE (hydrophilic)	0.22 µm	`S13PTFE022L`	`S25PTFE022L`	`S30PTFE022L`
PTFE (hydrophilic)	0.45 µm	`S13PTFE045L`	`S25PTFE045L`	`S30PTFE045L`
PES	0.22 µm	`S13PES022`	`S25PES022`	`S30PES022`
PES	0.45 µm	`S13PES045`	`S25PES045`	`S30PES045`
PVDF (hydrophobic)	0.22 µm	`S13PVDF022H`	`S25PVDF022H`	`S30PVDF022H`
PVDF (hydrophobic)	0.45 µm	`S13PVDF045H`	`S25PVDF045H`	`S30PVDF045H`
PVDF (hydrophilic)	0.22 µm	`S13PVDF022L`	`S25PVDF022L`	`S30PVDF022L`
PVDF (hydrophilic)	0.45 µm	`S13PVDF045L`	`S25PVDF045L`	`S30PVDF045L`
CA	0.22 µm	`S13CA022`	`S25CA022`	`S30CA022`
CA	0.45 µm	`S13CA045`	`S25CA045`	`S30CA045`
MCE	0.22 µm	`S13MCE022`	`S25MCE022`	`S30MCE022`
MCE	0.45 µm	`S13MCE045`	`S25MCE045`	`S30MCE045`
PP	0.22 µm	`S13PP022`	`S25PP022`	`S30PP022`
PP	0.45 µm	`S13PP045`	`S25PP045`	`S30PP045`
Glass fibre	0.7 µm	`S13GF070`	`S25GF070`	`S30GF070`
Glass fibre	1.2 µm	`S13GF120`	`S25GF120`	`S30GF120`
RC	0.22 µm	`S13RC022`	`S25RC022`	`S30RC022`
RC	0.45 µm	`S13RC045`	`S25RC045`	`S30RC045`

Quote the product code when you enquire.
